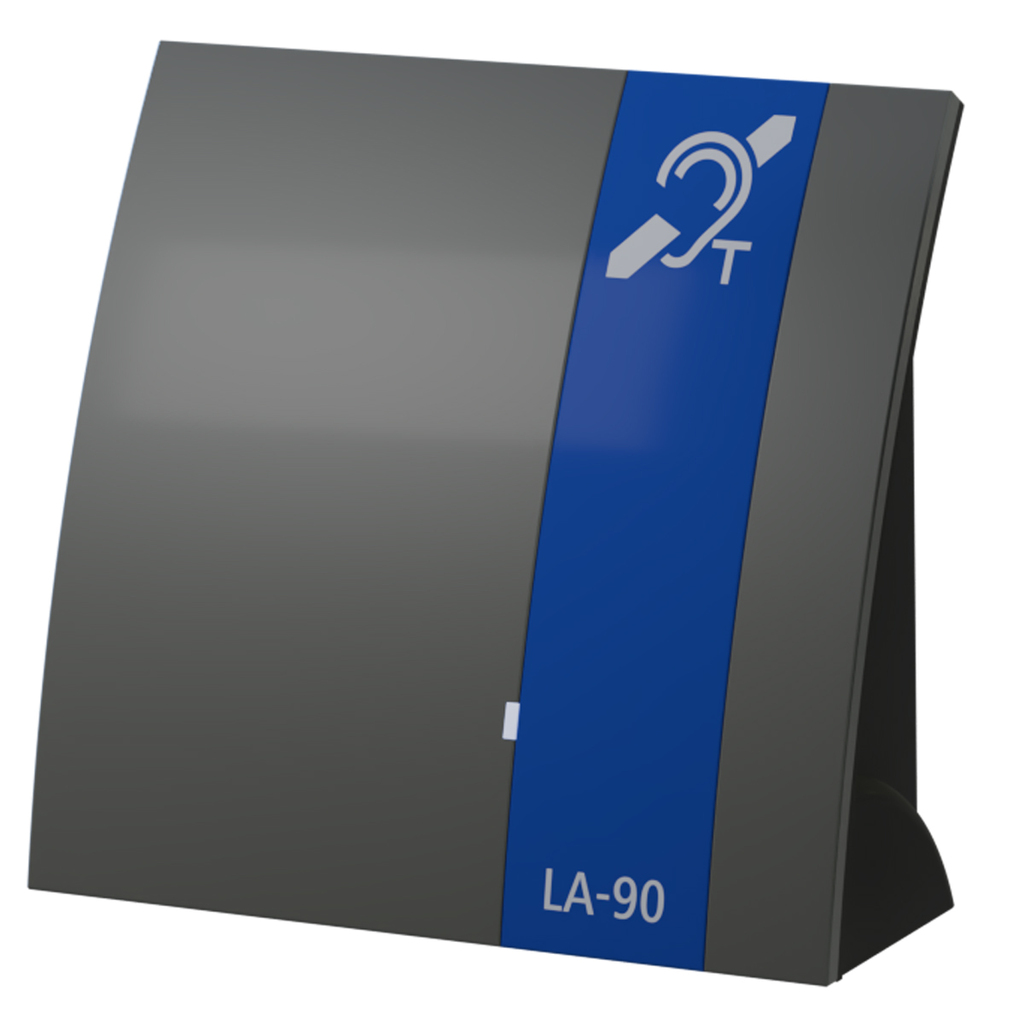

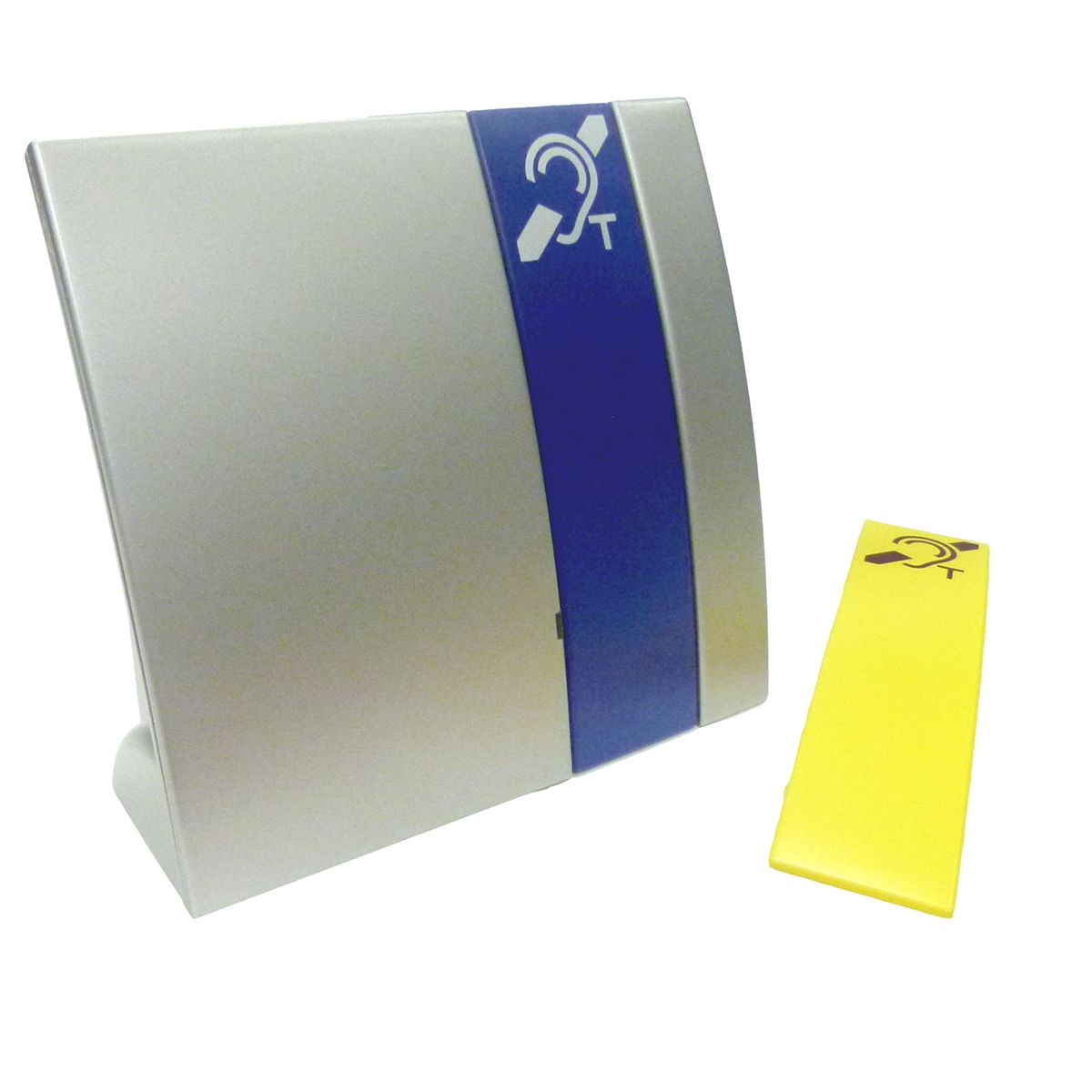

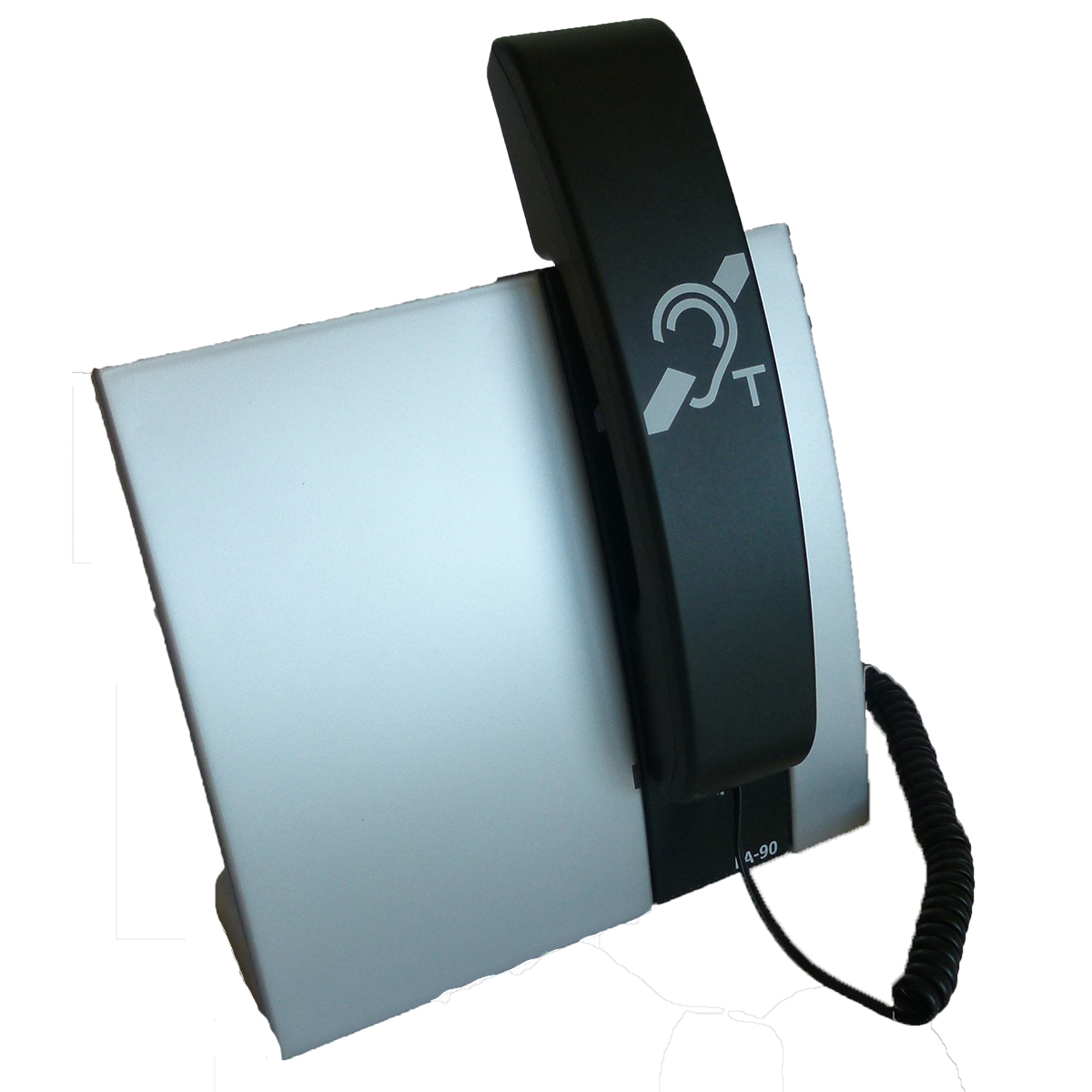

LA90 Portable Induction Loop
LA90 Portable Induction Loop
LA90 Portable Induction Loop
LA90 Portable Induction Loop

LA90 Portable Induction Loop

Order Code: 137-100

£116.65 ex. VAT

£139.98 inc. VAT

Subtotal: To go here

Learn more

This product qualifies for VAT relief. Click for more information.

Product USP

VAT Relief Eligible

This product carried a warranty for 2 years

Product USP

2 Year Warranty

If you have a pacemaker or ICD fitted you should read your user manual along with the FAQ's on our website before using this product. If in doubt consult your cardiologist. Click for more information.

Product USP

Pacemakers

This product is suitable for users with hearing aids that have the 'T' or loop facility.

Product USP

T-Loop

This product carries a money back guarantee. Click for more information.

Product USP

Moneyback Guarantee

Instructions

Print Page

LA90 Portable Induction Loop LA90 Portable Induction Loop LA90 Portable Induction Loop LA90 Portable Induction Loop

Description

The LA90 Portable Loop provides a convenient solution for hearing aid users to listen more easily to conversation in noisy situations via the “T” or loop program of their hearing aid.

It can be used in reception areas, meeting rooms, interviews, checkouts, anywhere a one-to-one conversation needs to be held in either a noisy area or where discretion is required.  It could also be used in a meeting room for one hearing aid wearer to hear a group of people using additional microphones.

This unit will help with your DDA compliance.

A built-in microphone within the unit picks the sound up of the person needing to be heard and transmits a loop signal to the hearing aid user.  The speaker and hearing aid user need to be within approximately 1m(3ft) of the unit.  The hearing aid user will see a confidence light on the front of the unit to show them the system is operating.  The speaker will see an indication of their voice being transmitted.

The system can be used with an additional microphone to enhance the speech of the person needing to be heard.

The loop system will transmit a signal both ways so both individuals can receive the signal equally well.

If necessary the additional microphone can be used so that both individuals can have their voices received and transmitted clearer and with less background noise.

If required the system can be used placed flat on a table in front of the user and a separate microphone placed in a convenient position on a table amongst a group of people that need to be heard.

Features

  • Confidence Light
  • Battery/Mains powered
  • Charging Indicator
  • On/Off Indicators
  • Voice Transmission/Loop Field indication
  • Internal/External/Mixed Microphone Selection Switch
  • 3.5mm external microphone socket
  • External microphone sensitivity control
  • Kensington Locket socket for counter cable locks
  • Screw mounting holes with covers
  • Rubber feet to place as required

Contents

  • Loop Amplifier with built-in microphone
  • Additional external microphone
  • Choice of two coloured panels
  • Battery pack
  • Mains power supply UK/EU, 16VDC 1Amp
  • Loop Installation sticker
  • 4 stick-on rubber feet
  • Instructions
  • 2 year Warranty

Technical Information

Power Supply

  • Internal 12V DC NiMH 1300mAh battery pack
  • External Charger 100-240V 50-60Hz AC 20VA  16.0VDC 1.0A
  • Auto power off after 5 minutes
  • Charge time approx 4 hours
  • Operating time per charge approx 6 hours

Controls

  • External Microphone / Line Input rotary volume control.

Input connections

  • 1 x internal microphone; sensitivity -60dB ±3dB
  • 1x external microphone line input.  3.5mm stereo jack socket.
  • Socket DC powered for electret microphones.
  • Sensitivity 2-500mV for full output

Loop output

  • Internal Loop Coil, Output power 10W max.

Indicators

  • Blue Light Emitting Diode (LED) for Power On indication on front
  • Green Light Emitting Diode (LED) for Power On indication on back
  • Orange Light Emitting Diode (LED) Loop Level Indicator

Physical Properties

  • Width 200mm, Height 185mm, Depth 75mm
  • Weight: Amplifier 680g with battery pack installed.

200x185x70mm

Colour

Size

Weight
